BUDA-gSlider for high-resolution, distortion-free diffusion imaging

We are pleased to announce the release of our BUDA-gSlider sequence and off-line reconstruction packages for high-resolution, distortion-free diffusion imaging. This package is developed by research groups at Martinos Center for Biomedical Imaging / MGH and Stanford University.

Pulse sequence for BUDA-gSlider is currently available for the Siemens Scanners on the VE11C platform. The off-line reconstruction script is based on MATLAB 2014b or later versions.

To request the software, instructions and example protocols, please navigate to martinos.org/c2p and select "gSlider with BUDA" from the drop-down menu.


Blip-Up and -Down Acquisition (BUDA):

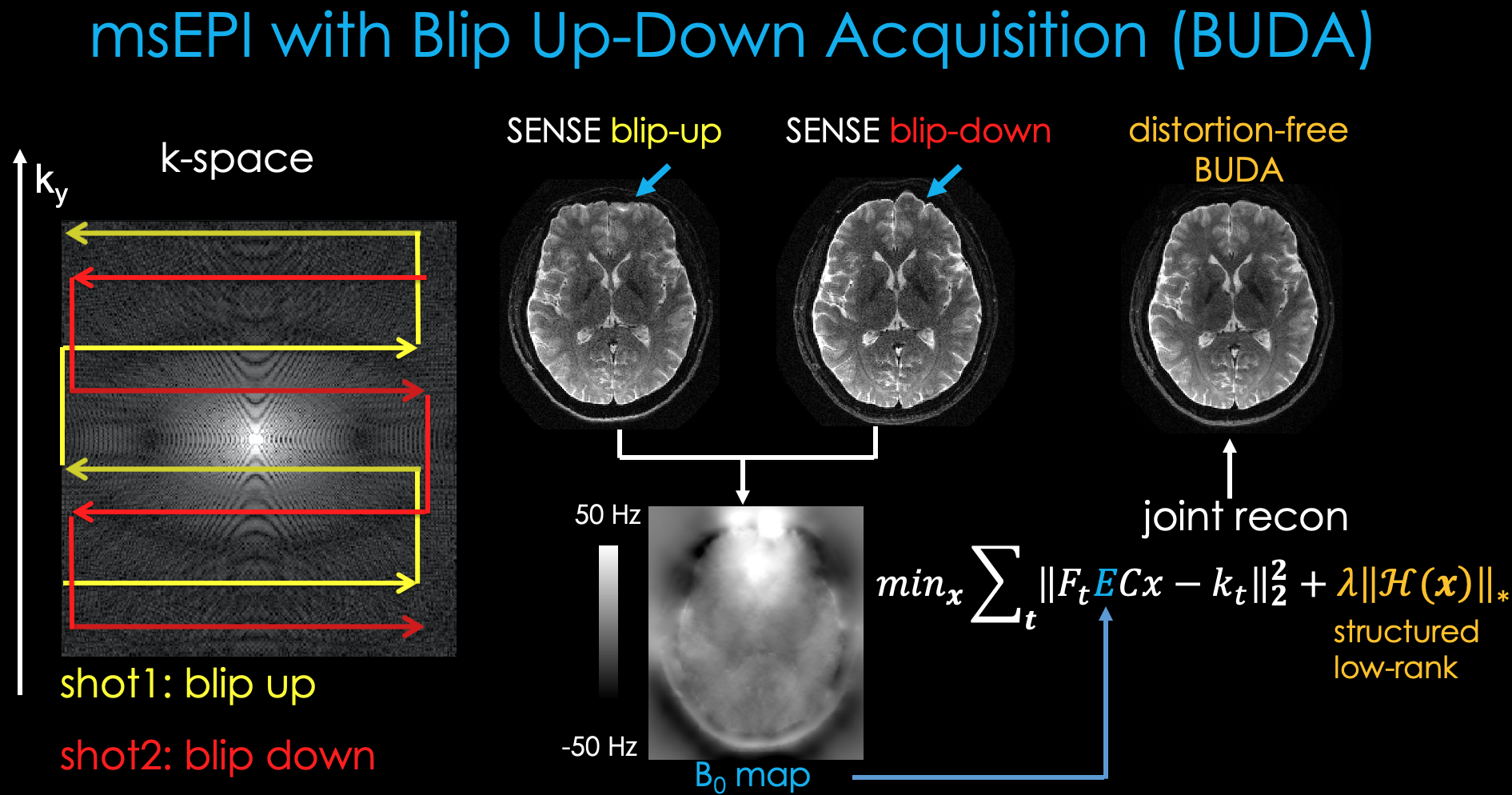

BUDA is a multi-shot EPI technique that acquires two shots of data with opposite phase encoding polarities [1,2]. Each individual shot is then reconstructed separately using parallel imaging, which are then processed with FSL's TOPUP [3] to estimate a field map. This field map is then incorporated into a joint parallel imaging reconstruction step where the two shots are reconstructed together, and their similarities are exploited using Hankel structured low-rank matrix constraints [4-6]. This obviates the need for navigator acquisitions since shot-to-shot phase differences can be directly estimated and accounted for. The k-space sampling patterns are staggered between the shots as shown below to provide complementary frequency coverage.

fig1

Generalized slice‐dithered enhanced resolution (gSlider):

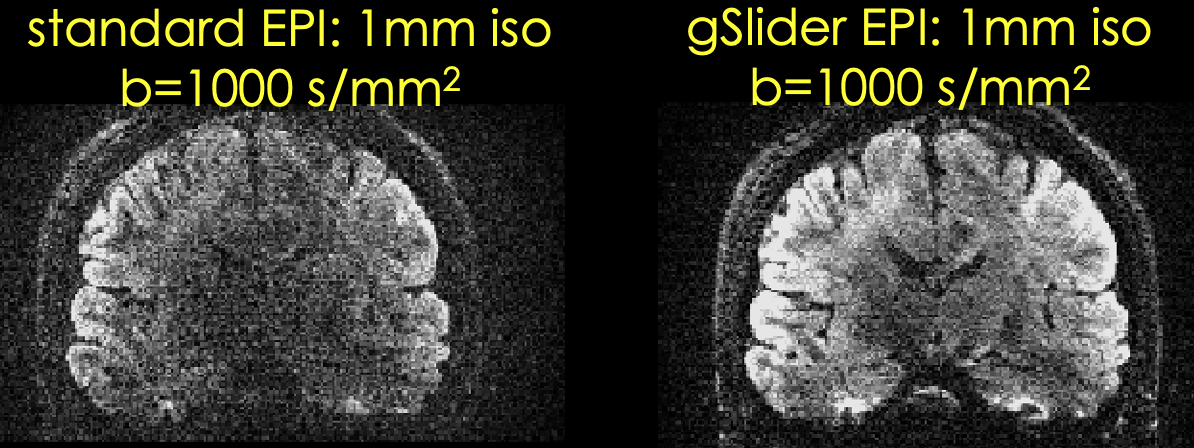

gSlider is an RF encoding super-resolution technique for high, isotropic resolution diffusion imaging [7]. This makes 5 different acquisitions at e.g. 5 mm slice thickness and uses a different RF pulse in each of the acquisitions. With the knowledge of the RF slice profiles, it then becomes possible to solve an inverse problem to resolve a volume with 1 mm thick slices. Each RF-encoded thick slice image is reconstructed with parallel imaging, after which their background phase is estimated and removed using real-valued diffusion processing [8] for self-navigation. gSlider provides a significant SNR boost compared to standard EPI due to its volumetric encoding ability as seen below.

fig2

High-resolution, distortion-free diffusion imaging with BUDA-gSlider:

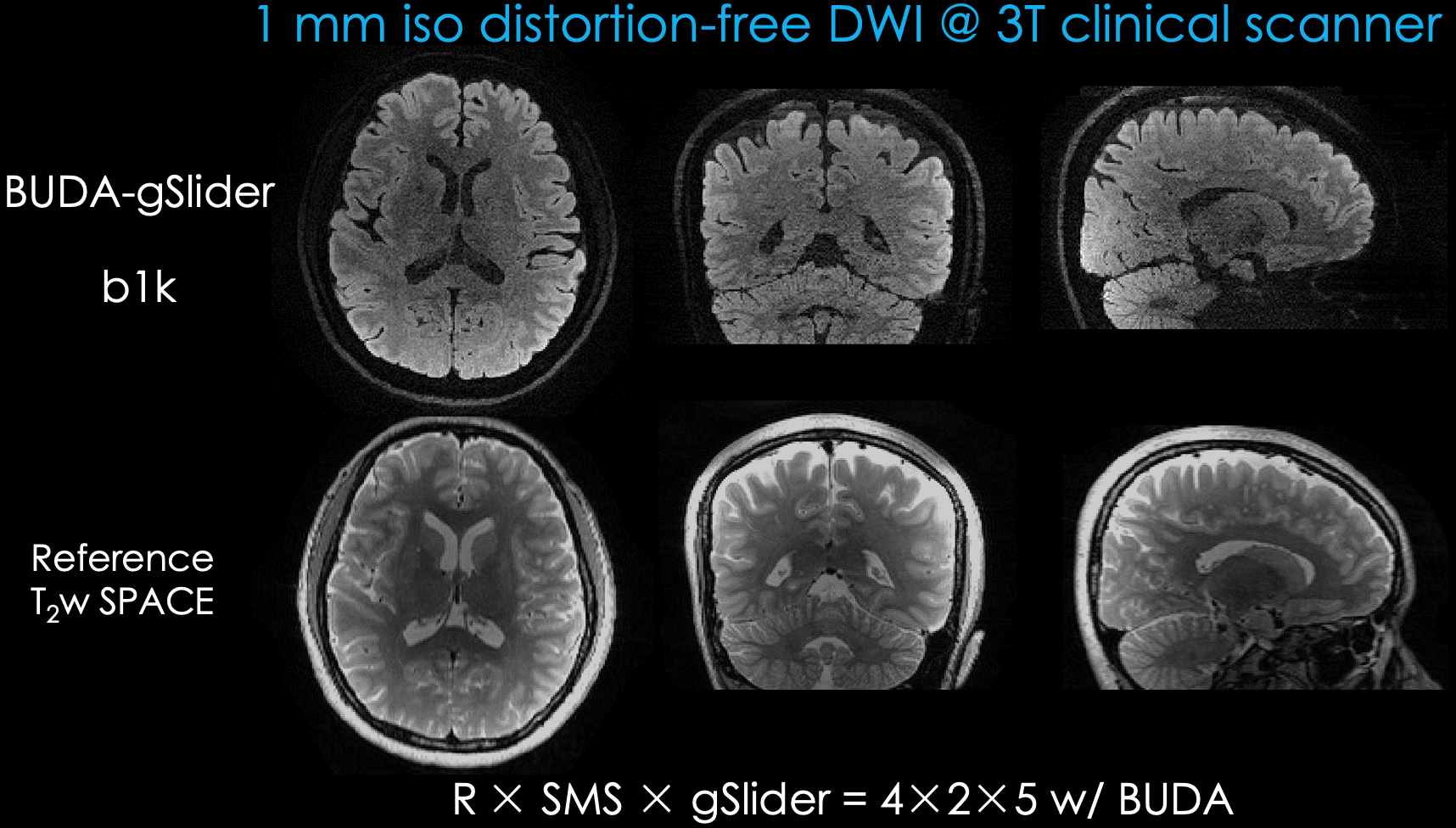

Combination of BUDA and gSlider strategies enable high-SNR, distortion-free diffusion imaging. This requires 10 shots of EPI per diffusion direction (2x AP/PA and 5x RF encoding). As shown below, this permits high geometric fidelity imaging on a clinical 3T system, and makes use of SMS acceleration with Blipped-CAIPI as well [9]. Further applications of BUDA-gSlider include high-resolution T2 and T2* mapping [10,11].

swi
